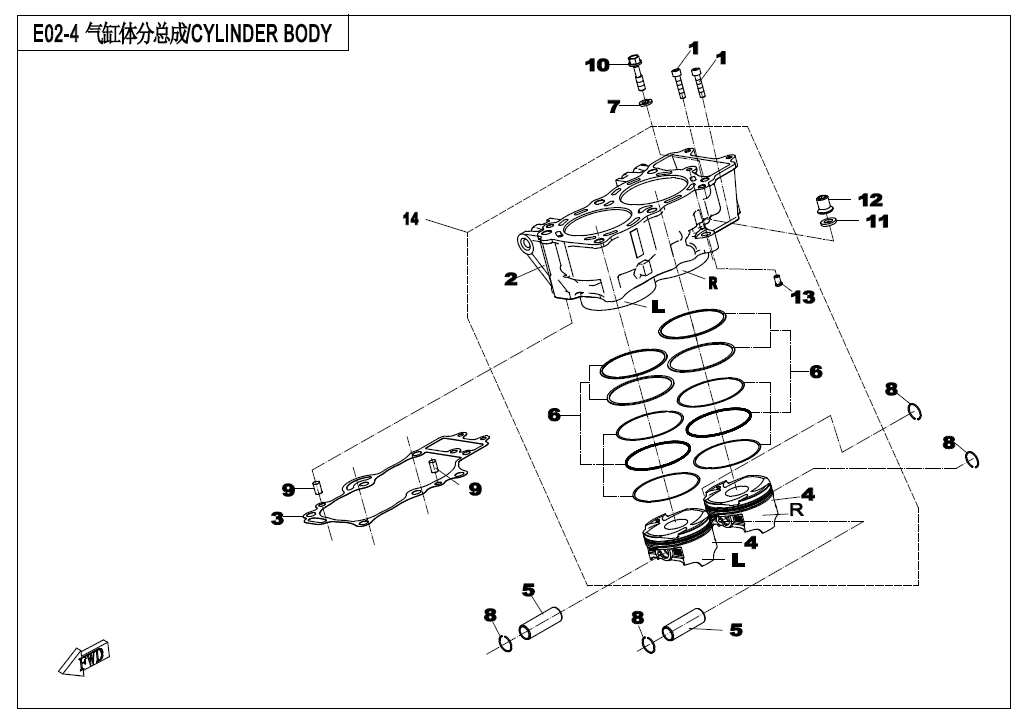

CYLINDER BODY - E02-4 | 2023, ENGINE, 283MT-C(CF650-7F) |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0060-030003-00001

Part Name: INNER HEX BOLT

Effective: 2022-11-14

Alternative parts:

Price: 1,50 € : 1,50 €

02

P/N (SKU): 0700-023001-4BY01

Part Name: CYLINDER BODY

Effective: 2022-11-14

Remarks: nano black

Alternative parts: 0700-023001-4BY02/0700-023001-4BY03/0700-023001-4BY04

Specification: NANO BLACK

Price: 377,00 € : 377,00 €

03

P/N (SKU): 0700-023002-0001

Part Name: CYLINDER BODY GASKET

Effective: 2022-11-14

Alternative parts:

Price: 5,00 € : 5,00 €

04

P/N (SKU): 0700-040007-10011

Part Name: PISTON

Effective: 2022-11-14

Remarks: â

Alternative parts: 0700-040007-20010

Price: 27,00 € : 27,00 €

04

P/N (SKU): 0700-040007-10021

Part Name: PISTON

Effective: 2022-11-14

Remarks: â â

Alternative parts: 0700-040007-20020

Specification: MARK 2

Price: 27,00 € : 27,00 €

04

P/N (SKU): 0700-040007-10031

Part Name: PISTON

Effective: 2022-11-14

Remarks: â â â

Alternative parts:

Specification: MARK 3

Price: 27,00 € : 27,00 €

04

P/N (SKU): 0700-040007-20010

Part Name: PISTON

Effective: 2022-11-14

Remarks: mark I

Alternative parts:

Specification: MARK 1

Price: 27,00 € : 27,00 €

04

P/N (SKU): 0700-040007-20020

Part Name: PISTON

Effective: 2022-11-14

Remarks: mark II

Alternative parts:

Specification: MARK 2

Price: 28,00 € : 28,00 €

05

P/N (SKU): 0700-040008

Part Name: PISTON PIN

Effective: 2022-11-14

Alternative parts:

Price: 4,50 € : 4,50 €

06

P/N (SKU): 0700-0400A0

Part Name: PISTON RING ASSY

Effective: 2022-11-14

Alternative parts:

Price: 30,00 € : 30,00 €

07

P/N (SKU): 0700-023004

Part Name: WASHER

Effective: 2022-11-14

Alternative parts:

Specification: 8.5Ã15.5Ã2

Price: 1,50 € : 1,50 €

08

P/N (SKU): 0700-040009

Part Name: CIRCLIP, PISTON PIN

Effective: 2022-11-14

Alternative parts:

Price: 1,50 € : 1,50 €

09

P/N (SKU): 0700-022018

Part Name: SOLID PIN 8x14

Effective: 2022-11-14

Alternative parts:

Specification: 8x14

Price: 1,50 € : 1,50 €

10

P/N (SKU): 0700-023003-00001

Part Name: BOLT M8x43

Effective: 2022-11-14

Alternative parts: 0700-023003-00002

Specification: M8x43

Price: 1,50 € : 1,50 €

10

P/N (SKU): 0700-023003-00002

Part Name: BOLT

Effective: 2022-11-14

Alternative parts:

Price: 2,00 € : 2,00 €

11

P/N (SKU): 0700-022016

Part Name: WASHER

Effective: 2022-11-14

Alternative parts:

Specification: 10.5x19x2.3

Price: 1,50 € : 1,50 €

12

P/N (SKU): 0700-011111-00001

Part Name: NUT M10x1.25

Effective: 2022-11-14

Alternative parts: 0700-011111-00002

Specification: M10x1.25

Price: 3,00 € : 3,00 €

12

P/N (SKU): 0700-011111-00002

Part Name: NUT

Effective: 2022-11-14

Alternative parts:

Price: 3,00 € : 3,00 €

13

P/N (SKU): 0700-023005

Part Name: RESTRICTION PLUG

Effective: 2022-11-14

Alternative parts:

Price: 2,00 € : 2,00 €

14

P/N (SKU): SH-0700-0230B0

Part Name: PISTON, CYLINDER BODY

Effective: 2022-11-14

Remarks: nano black

Alternative parts:

Price: 185,00 € : 185,00 €
