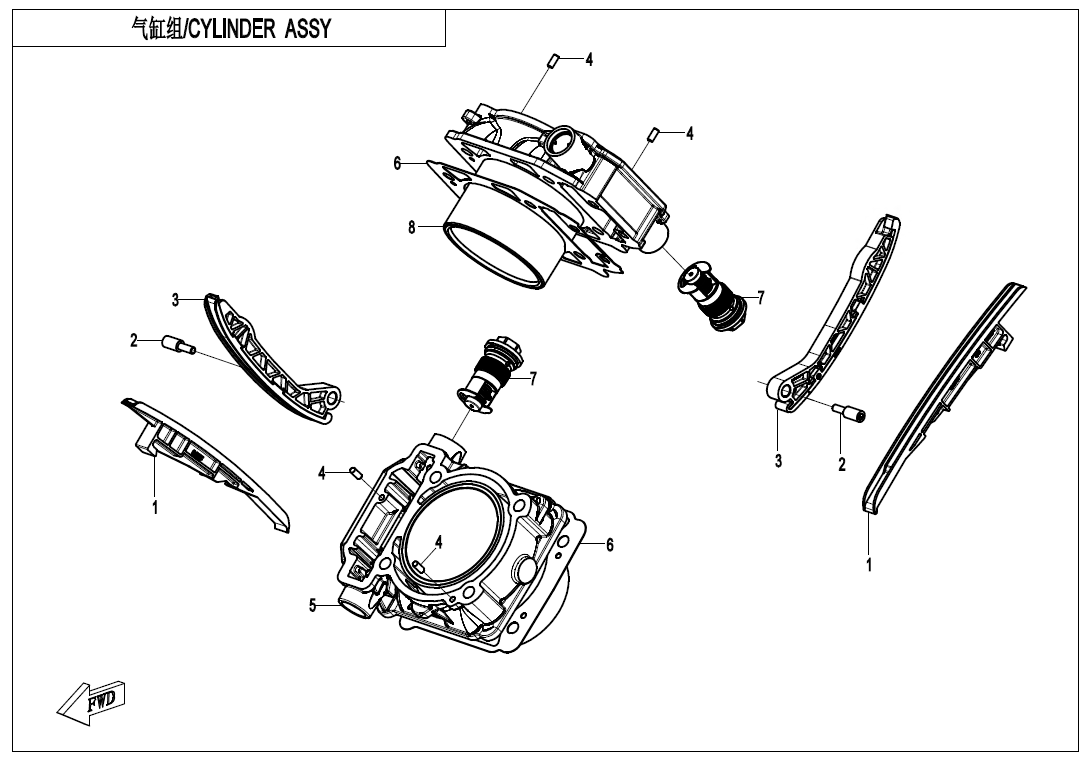

» » » CYLINDER BODY - E02-3
P/N (SKU): 0JWV-023004-3000
Part Name: GUIDE PLATE Effective: 2025-04-28
P/N (SKU): 0800-023001-00002
Part Name: SCREW, TENSIONER PLATE Effective: 2025-04-28
P/N (SKU): 0JWV-023003-3000
Part Name: TENSION PLATE Effective: 2025-04-28
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE Effective: 2025-04-28
Specification: P5x11.8
P/N (SKU): 0JWV-023110-3002-Q0-00001
Part Name: FIRST CYLINDER BODY ASSY Effective: 2025-04-28
Specification: MARK 1
P/N (SKU): 0JWV-023110-3002-Q0-00002
Part Name: FIRST CYLINDER BODY ASSY Effective: 2025-04-28
Specification: MARK 2
P/N (SKU): 0JWV-023110-3003-Q0-00001
Part Name: FRONT CYLINDER BODY ASSY 1 Effective: 2025-10-30
P/N (SKU): 0JWV-023110-3003-Q0-00002
Part Name: FRONT CYLINDER BODY ASSY 2 Effective: 2025-10-30
P/N (SKU): 0800-023002-00002
Part Name: CYLINDER GASKET Effective: 2025-04-28
P/N (SKU): 0JWV-024400-3002
Part Name: TENSIONER ASSY Effective: 2025-04-28
P/N (SKU): 0JWV-023120-3001-Q0-00001
Part Name: REAR CYLINDER BODY ASSY Effective: 2025-04-28
Specification: MARK 1
P/N (SKU): 0JWV-023120-3001-Q0-00002
Part Name: REAR CYLINDER BODY ASSY Effective: 2025-04-28
Specification: MARK 2
P/N (SKU): 0JWV-023120-3002-Q0-00001
Part Name: REAR CYLINDER BODY ASSY 1 Effective: 2025-10-30
P/N (SKU): 0JWV-023120-3002-Q0-00002
Part Name: REAR CYLINDER BODY ASSY 2 Effective: 2025-10-30
