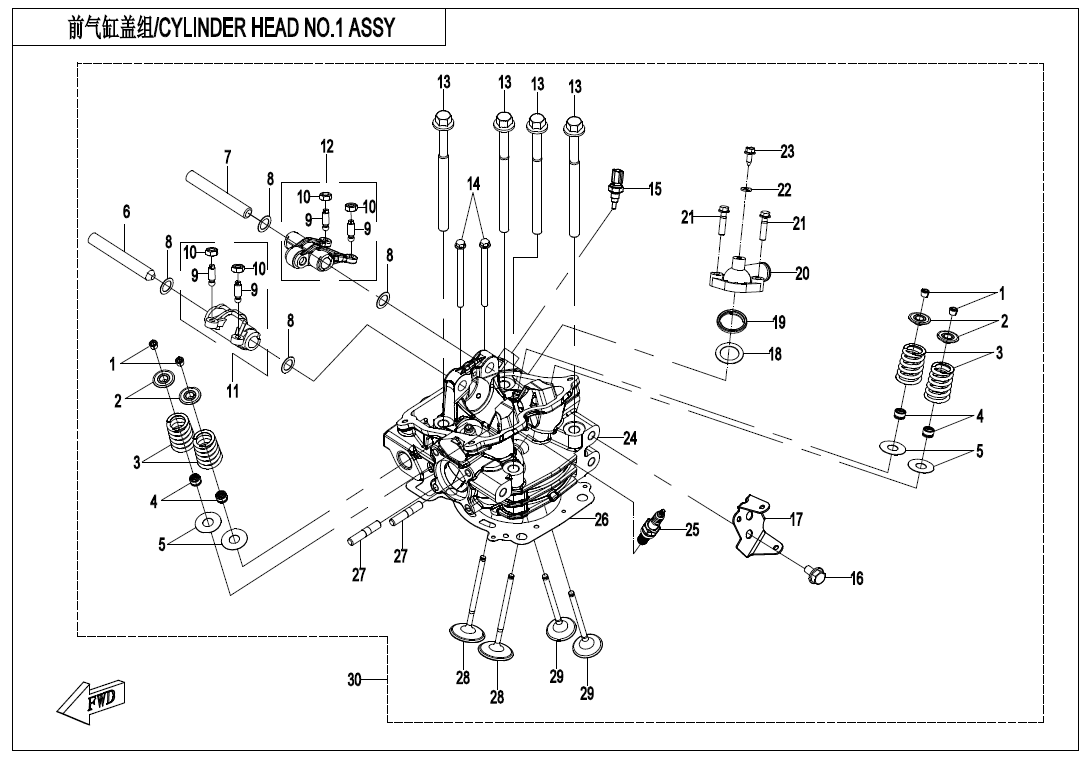

CYLINDER HEAD NO.1 ASSY - E02-2

CYLINDER HEAD NO.1 ASSY - E02-2

No.

1
P/N (SKU): 0JYV-022016-4000
Part Name: LOCK CLIP, VALVE
Effective: 2025-04-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
2
P/N (SKU): 0JYV-022007-4000
Part Name: UPPER SEAT, VALVE SPRING
Effective: 2025-04-28
Alternative parts:
Price: 3,00 € : 3,00 €
-+
3
P/N (SKU): 0JYV-022006-4002
Part Name: VALVE SPRING
Effective: 2025-04-28
Alternative parts:
Price: 4,00 € : 4,00 €
-+
4
P/N (SKU): 0JYV-022300-4000
Part Name: OIL SEAL, VALVE
Effective: 2025-04-28
Alternative parts:
Price: 3,00 € : 3,00 €
-+
5
P/N (SKU): 0JYV-022008-4000
Part Name: LOWER SEAT, VALVE SPRING
Effective: 2025-04-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 0800-022001
Part Name: ROCKER ARM SHAFT
Effective: 2025-04-28
Alternative parts:
Price: 4,50 € : 4,50 €
-+
7
P/N (SKU): 0JYV-022001-4000-10
Part Name: SWING ARM SHAFT, INTAKE
Effective: 2025-04-28
Alternative parts:
Price: 7,00 € : 7,00 €
-+
8
P/N (SKU): 0800-022002
Part Name: WASHER
Effective: 2025-04-28
Alternative parts:
Specification: 12.3x18.5x0.5
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 0800-022510
Part Name: ADJUST SCREW, VALVE CLEARANCE
Effective: 2025-04-28
Alternative parts:
Price: 3,00 € : 3,00 €
-+
10
P/N (SKU): 0800-022506
Part Name: ADJUST NUT, VALVE CLEARANCE
Effective: 2025-04-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0800-022600-20000
Part Name: ROCKER ARM ASSY, AIR EXHAUST
Effective: 2025-04-28
Alternative parts:
Price: 28,00 € : 28,00 €
-+
12
P/N (SKU): 0JYV-022500-4001
Part Name: SWING ARM, INTAKE
Effective: 2025-04-28
Alternative parts:
Price: 30,00 € : 30,00 €
-+
13
P/N (SKU): 0800-022003-00001
Part Name: CYLINDER BOLT
Effective: 2025-04-28
Alternative parts:
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 3,50 € : 3,50 €
-+
14
P/N (SKU): 0800-022009-00001
Part Name: BOLT M6x80
Effective: 2025-04-28
Alternative parts:
Specification: M6x80
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 018B-022810
Part Name: COOLANT TEMP. SENSOR
Effective: 2025-04-28
Alternative parts:
Price: 27,00 € : 27,00 €
-+
16
P/N (SKU): 30006-103020810
Part Name: BOLT M10x20
Effective: 2025-04-28
Alternative parts:
Specification: M10x20
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): 0JWV-026002-3001
Part Name: PIPE BRACKET
Effective: 2025-04-28
Alternative parts:
Price: 3,50 € : 3,50 €
-+
18
P/N (SKU): 0800-026002
Part Name: WASHER
Effective: 2025-04-28
Alternative parts:
Specification: 20.5x30x0.8
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 0010-022802
Part Name: SEAL RING
Effective: 2025-04-28
Alternative parts:
Price: 2,50 € : 2,50 €
-+
20
P/N (SKU): 0800-022013-10000
Part Name: THERMOSTAT CAP
Effective: 2025-04-28
Alternative parts:
Price: 5,00 € : 5,00 €
-+
21
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2025-04-28
Alternative parts:
Specification: M6x25
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0800-022011-00001
Part Name: WASHER
Effective: 2025-04-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 0JWV-022102-2000
Part Name: SCREW
Effective: 2025-04-28
Alternative parts:
Specification: 5.5×16
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0JWV-022100-3000
Part Name: FRONT CYLINDER HEAD ASSY
Effective: 2025-04-28
Alternative parts: 0JWV-022100-3001
Price: 280,00 € : 280,00 €
-+
25
P/N (SKU): 0JWD-170200-7000
Part Name: SPARK PLUG
Effective: 2025-04-28
Alternative parts:
Price: 28,00 € : 28,00 €
-+
26
P/N (SKU): 0800-022200-00002
Part Name: CYLINDER HEAD GASKET
Effective: 2025-04-28
Alternative parts:
Price: 15,00 € : 15,00 €
-+
27
P/N (SKU): 0180-022003-00002
Part Name: STUD
Effective: 2025-04-28
Alternative parts:
Specification: M8x42
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 0JYV-022005-4000
Part Name: EXHAUST VALVE
Effective: 2025-04-28
Alternative parts:
Price: 17,00 € : 17,00 €
-+
29
P/N (SKU): 0JYV-022004-4000
Part Name: INTAKE VALVE
Effective: 2025-04-28
Alternative parts:
Price: 12,00 € : 12,00 €
-+
30
P/N (SKU): SH-0JWV-0221A0
Part Name: CYLINDER 1 HEAD ASSY
Effective: 2025-04-28
Alternative parts:
Price: 240,75 € : 240,75 €
-+
