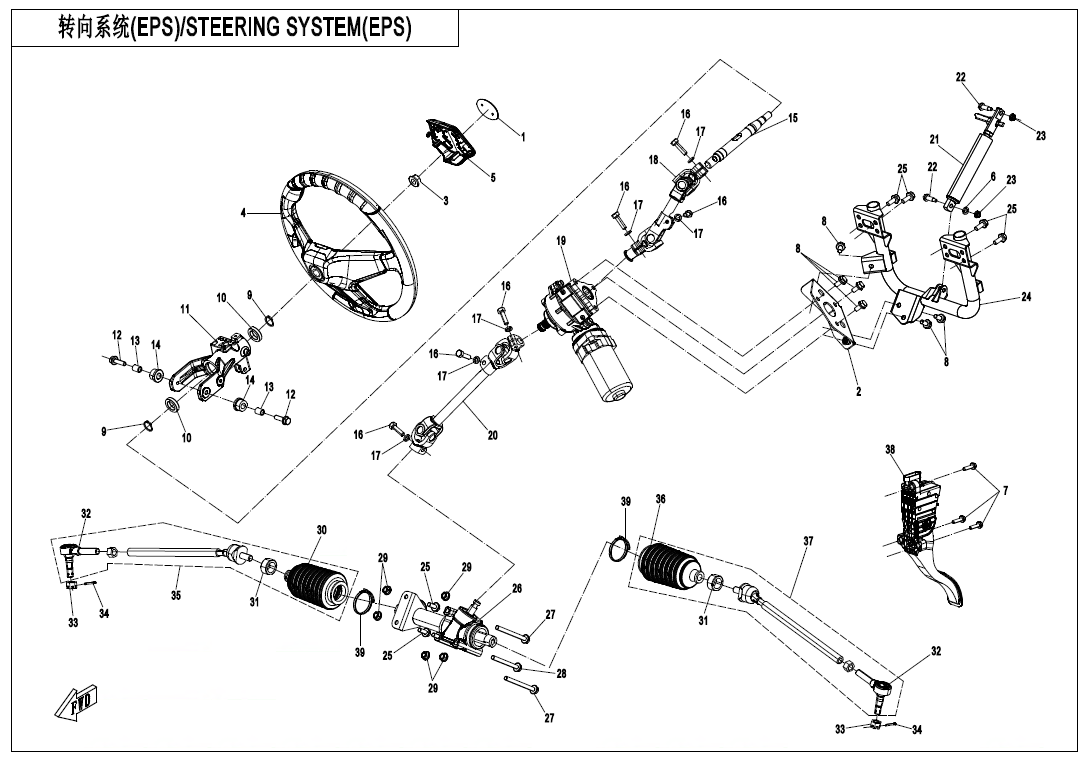

STEERING SYSTEM - F10

STEERING SYSTEM - F10

No.

01
P/N (SKU): 5ASV-190019-6000
Part Name: CFMOTO LOGO
Effective: 2025-04-28
Alternative parts:
Price: 17,00 € : 17,00 €
-+
02
P/N (SKU): 5ASV-103500-6200
Part Name: BRACKET, EPS
Effective: 2025-04-28
Alternative parts:
Price: 11,00 € : 11,00 €
-+
03
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2025-04-28
Alternative parts:
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 5ASV-102110-6000
Part Name: STEERING WHEEL SUB ASSY
Effective: 2025-04-28
Alternative parts:
Price: 95,00 € : 95,00 €
-+
05
P/N (SKU): 5ASV-102101-6000
Part Name: SHROUD
Effective: 2025-04-28
Alternative parts:
Price: 18,00 € : 18,00 €
-+
06
P/N (SKU): 30306-080112
Part Name: WASHER
Effective: 2025-04-28
Alternative parts:
Specification: φ8
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2025-04-28
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2025-04-28
Alternative parts: 30006-080020810
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
09
P/N (SKU): 30801-02005
Part Name: CIRCLIPS FOR SHAFT
Effective: 2025-04-28
Alternative parts:
Specification: 20
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30400-02005
Part Name: BEARING
Effective: 2025-04-28
Alternative parts:
Specification: 6804Z
Price: 8,00 € : 8,00 €
-+
11
P/N (SKU): 5HYV-102200-6000-0BV00
Part Name: STEERING WHEEL BRACKET
Effective: 2025-04-28
Alternative parts:
Specification: MIDNIGHT BLACK
Price: 42,00 € : 42,00 €
-+
12
P/N (SKU): 30006-080028810
Part Name: BOLT
Effective: 2025-04-28
Alternative parts:
Specification: M8x28@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9060-100008-00001
Part Name: STEERING COLUMN METAL BUSHING
Effective: 2025-04-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9060-100009
Part Name: STEERING COLUMN NYLON BUSHING
Effective: 2025-04-28
Alternative parts:
Price: 6,00 € : 6,00 €
-+
15
P/N (SKU): 7000-100001
Part Name: STEERING COLUMN
Effective: 2025-04-28
Alternative parts:
Price: 24,00 € : 24,00 €
-+
16
P/N (SKU): 30004-080030810
Part Name: BOLT
Effective: 2025-04-28
Alternative parts: 9CR6-102003
Specification: M8x30
Price: 1,50 € : 1,50 €
17
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2025-04-28
Alternative parts:
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 5HY0-103100
Part Name: UPPER STEERING UNIVERSAL SHAFT
Effective: 2025-04-28
Alternative parts:
Price: 72,00 € : 72,00 €
-+
19
P/N (SKU): 5KWV-150820-1001
Part Name: EPS MOTOR
Effective: 2025-04-28
Alternative parts:
Price: 303,00 € : 303,00 €
-+
20
P/N (SKU): 5ASV-103200-6200
Part Name: LOWER STEERING UNIVERSAL SHAFT
Effective: 2025-04-28
Alternative parts:
Price: 62,00 € : 62,00 €
-+
21
P/N (SKU): 5ASV-100020-6201
Part Name: GAS SPRING ASSY
Effective: 2025-04-28
Alternative parts:
Price: 21,20 € : 21,20 €
-+
22
P/N (SKU): 5HYV-103001-6000
Part Name: AIR SPRING UPPER FIXED BOLT
Effective: 2025-04-28
Alternative parts:
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2025-04-28
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 5ASV-103400-6000
Part Name: BRACKET, EPS
Effective: 2025-04-28
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 26,00 € : 26,00 €
-+
25
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2025-04-28
Alternative parts: 30006-080016810
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 5ASV-104060-6202
Part Name: STEERING MOTOR ASSY
Effective: 2025-04-28
Alternative parts:
Price: 76,00 € : 76,00 €
-+
27
P/N (SKU): 30019-080090810
Part Name: BOLT
Effective: 2025-04-28
Alternative parts:
Specification: M8x90@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): 30006-080080810
Part Name: BOLT
Effective: 2025-04-28
Alternative parts: 30006-080080840
Specification: M8x80@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2025-04-28
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 5BY0-104201
Part Name: RH PROTECTION SLEEVE, TIE ROD
Effective: 2025-04-28
Alternative parts:
Price: 17,00 € : 17,00 €
-+
31
P/N (SKU): 5BY0-104102
Part Name: CLAMP
Effective: 2025-04-28
Alternative parts:
Price: 2,00 € : 2,00 €
-+
32
P/N (SKU): 5BY0-104120
Part Name: BALL JOINT, STEERING SQM
Effective: 2025-04-28
Alternative parts:
Price: 27,00 € : 27,00 €
-+
33
P/N (SKU): 30219-122810
Part Name: NUT
Effective: 2025-04-28
Alternative parts:
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2025-04-28
Alternative parts:
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 7000-104200-50000
Part Name: RH STEERING ROD ASSY
Effective: 2025-04-28
Alternative parts:
Price: 86,00 € : 86,00 €
-+
36
P/N (SKU): 5BY0-104101
Part Name: LH PROTECTION SLEEVE, TIE ROD
Effective: 2025-04-28
Alternative parts:
Price: 17,00 € : 17,00 €
-+
37
P/N (SKU): 7000-104100-50000
Part Name: LH STEERING ROD ASSY
Effective: 2025-04-28
Alternative parts:
Price: 86,00 € : 86,00 €
-+
38
P/N (SKU): 5HY0-105000
Part Name: E-THROTTLE PEDAL
Effective: 2025-04-28
Alternative parts:
Price: 56,00 € : 56,00 €
-+
39
P/N (SKU): 0000-000014
Part Name: TIE BAND
Effective: 2025-04-28
Alternative parts:
Specification: BLACK
Price: 1,50 € : 1,50 €
-+
